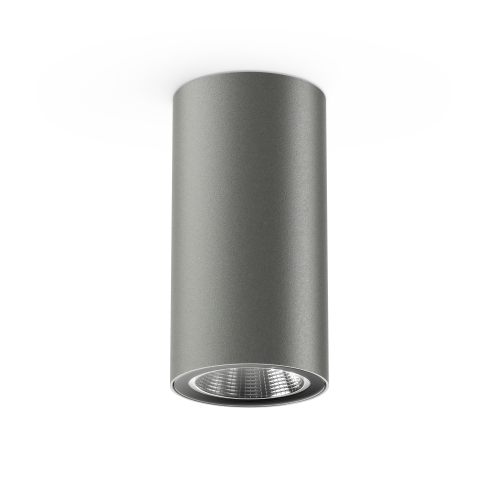

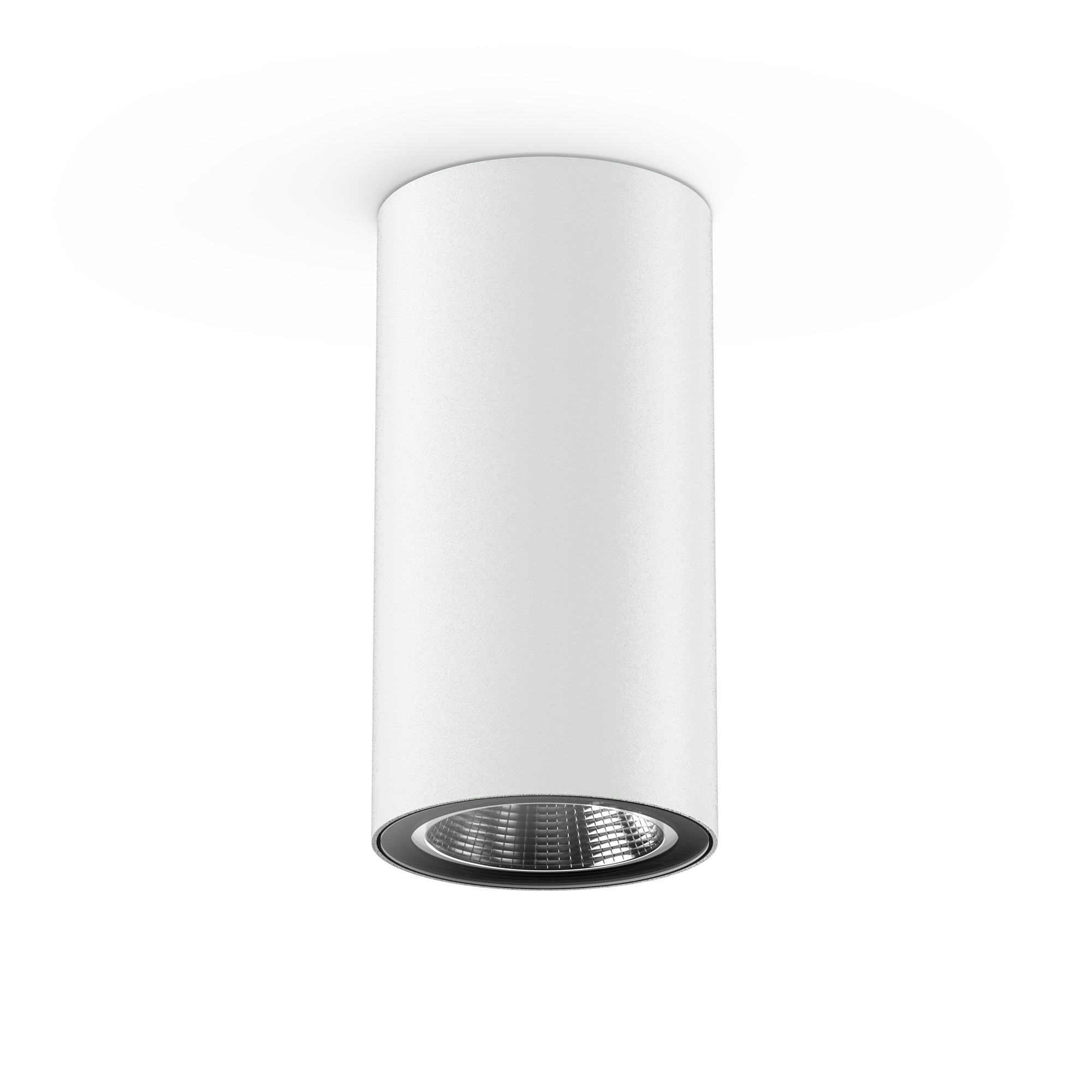

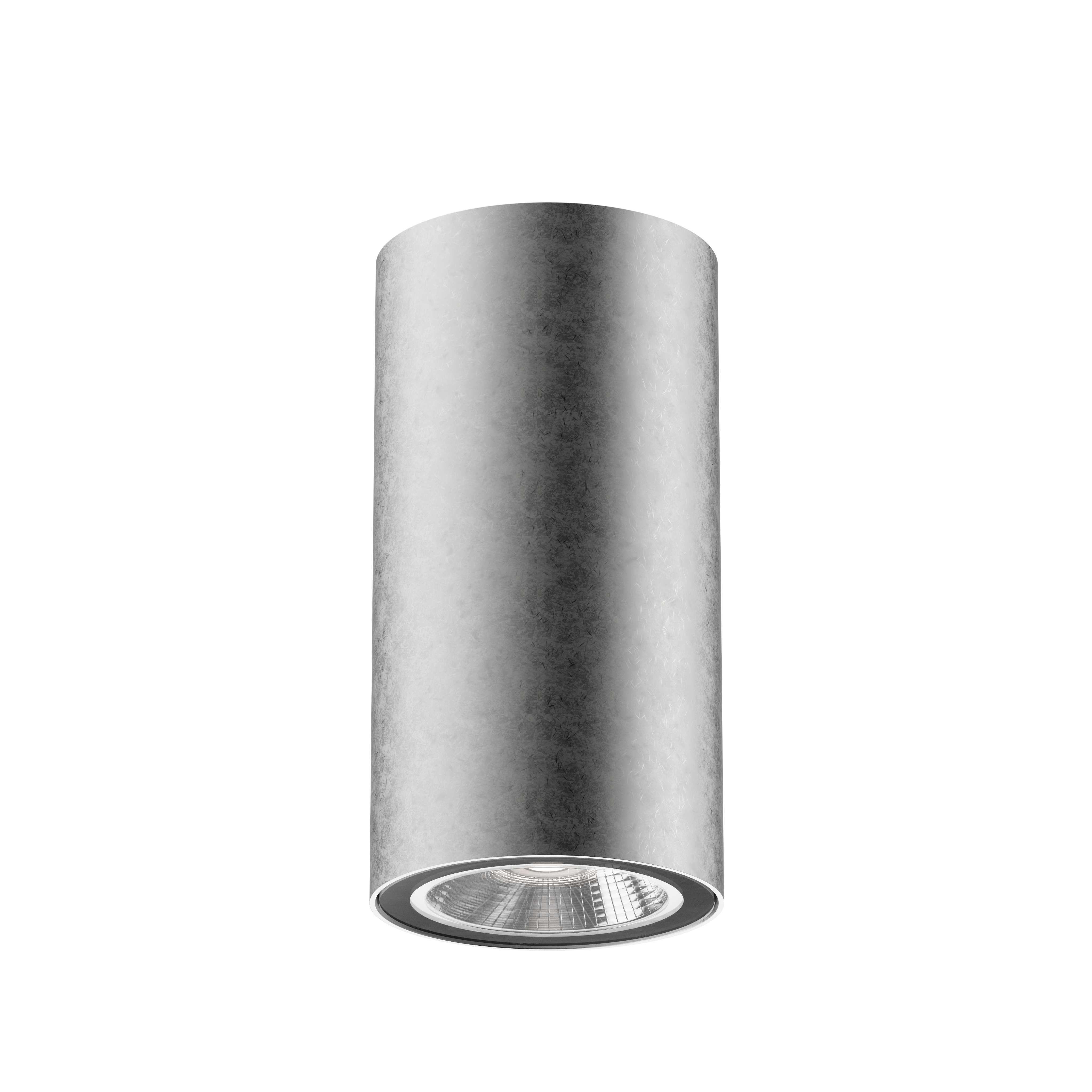

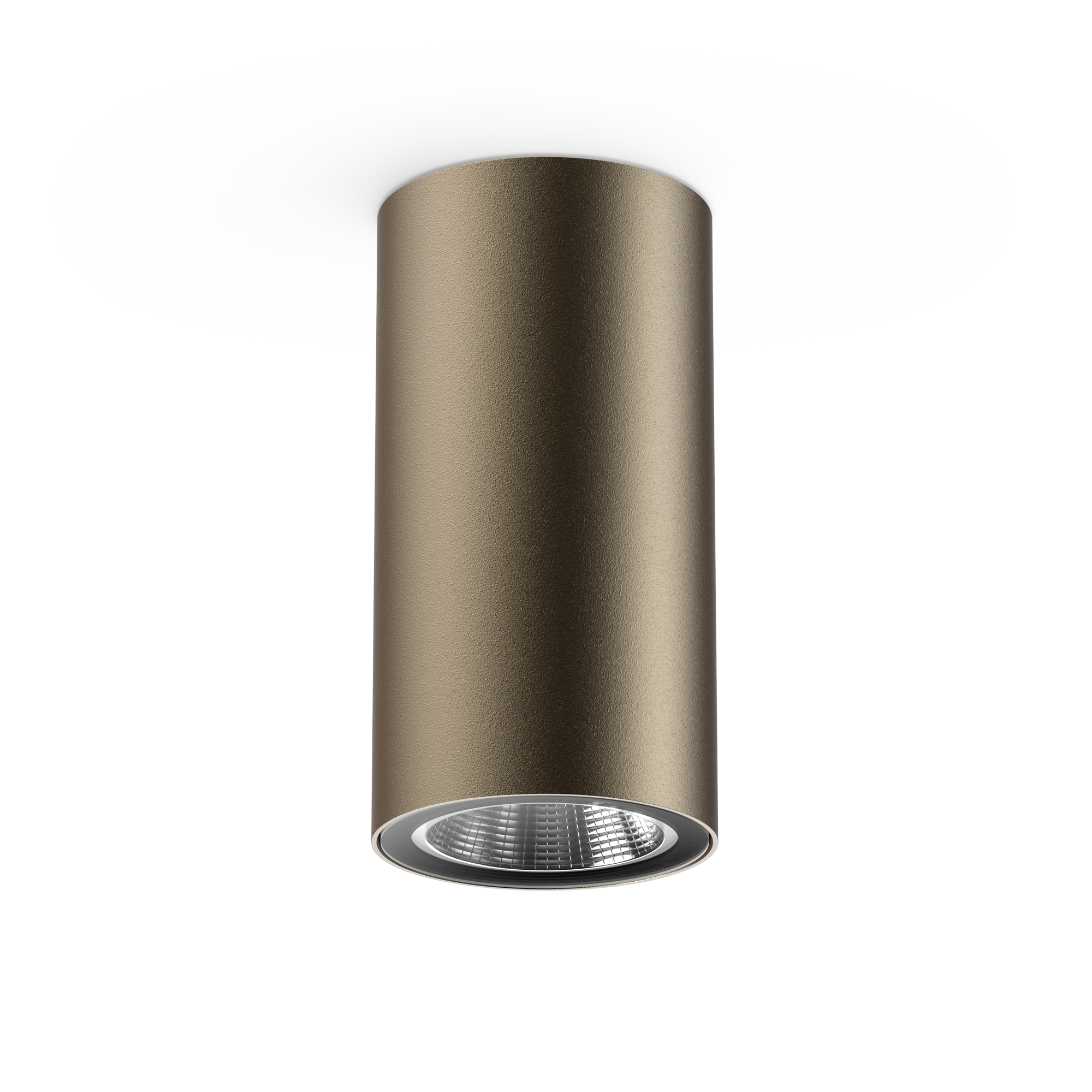

AQL-880

CNC machined aluminium surface mount downlight designed for architectural and commercial...

The AQL-880 is a configurable surface mount downlight designed for architectural and commercial applications. It functions as a downlight or projector to suit diverse project requirements.

CNC machined from 6000 series aluminium, this IP65-rated fixture features a terminal block or 500mm cable. Technical specifications include a 20W light source, multiple reflector optics, and 24V DC or 240V DALI dimming.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-880
Construction	CNC Machined Aluminium
Warranty	7 Years
Country of Manufacture	Australia

CRI (3000K)	90+
SDCM	3

Compliance / Certifications	RCM / SELV
Environmental certifications	IP IK

Voltage	240VAC / 24V DC
Frequency	50Hz
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II
