AQL-882

Surface mount up/downlight designed for architectural and commercial wall mount applications.

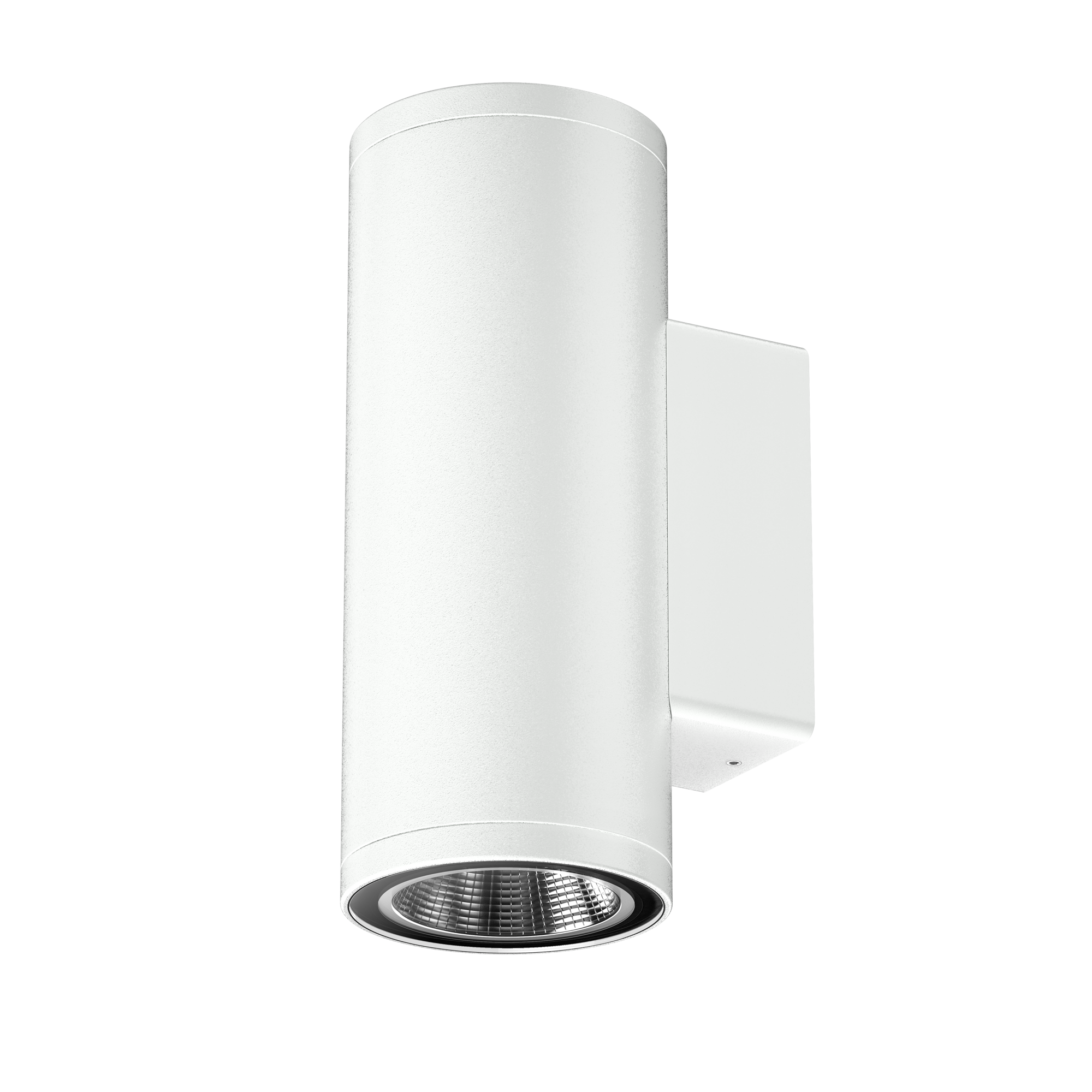

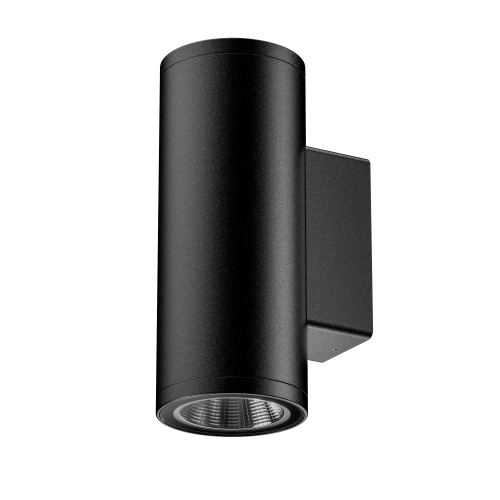

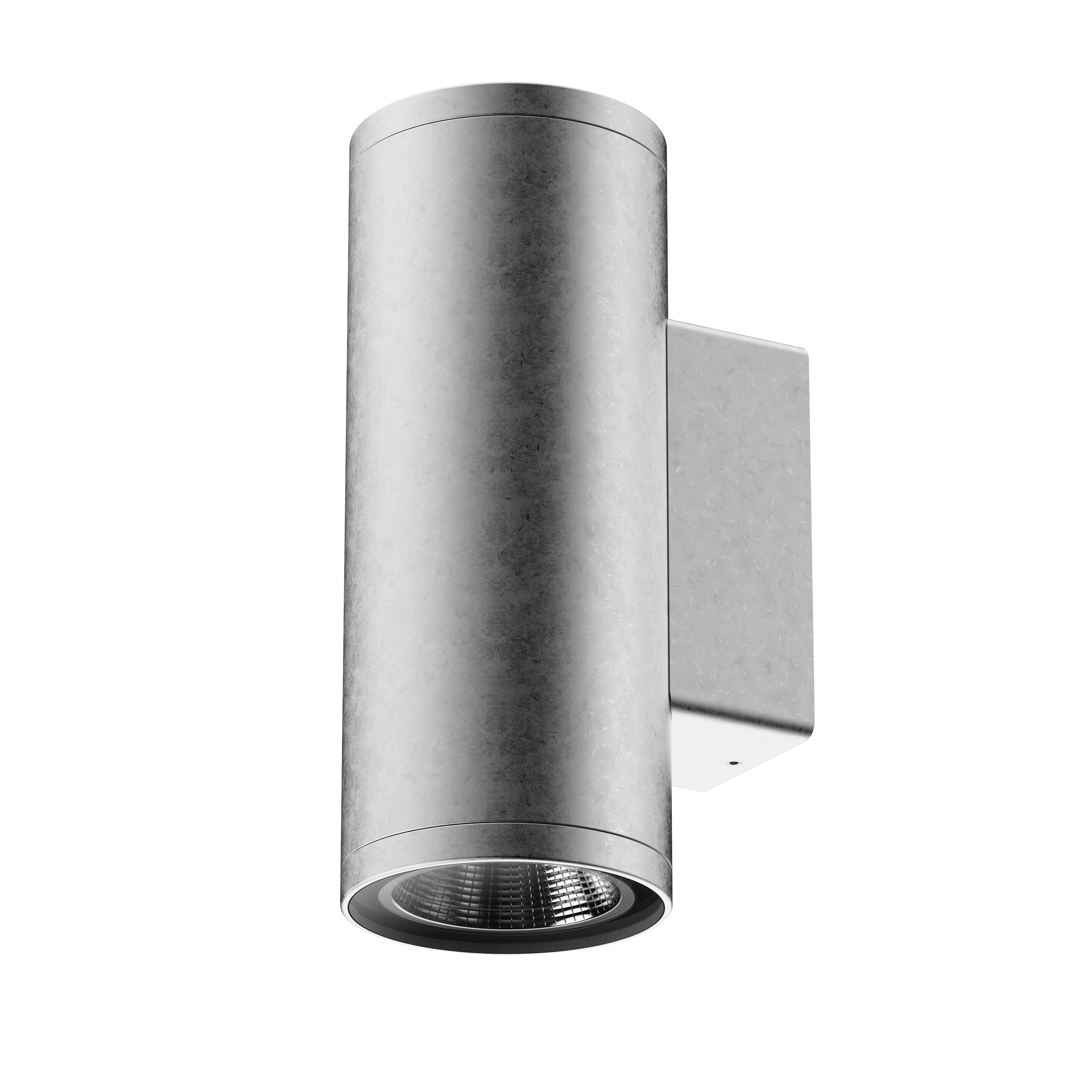

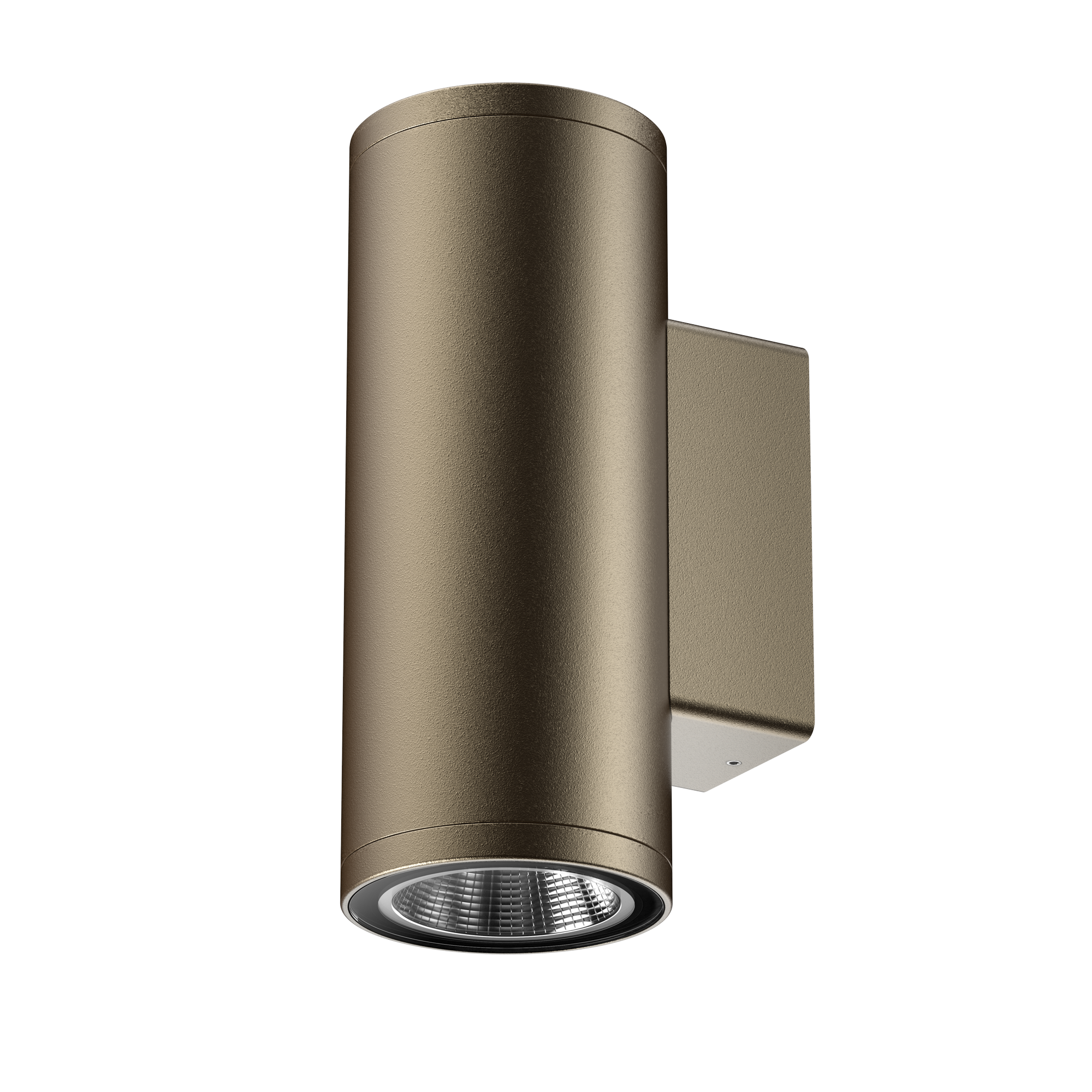

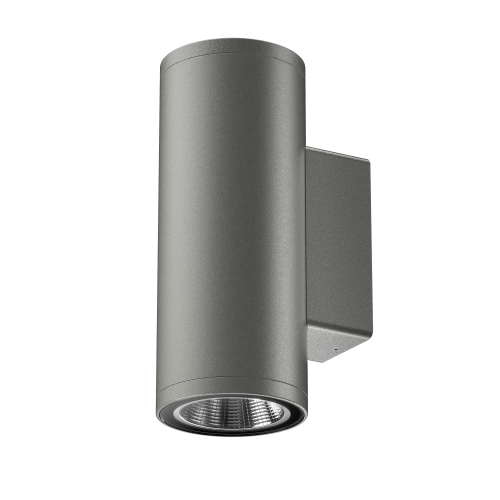

The AQL-882 is a surface-mounted wall up/downlight designed for architectural and commercial applications. Manufactured in Sydney, Australia, this luminaire provides dual-directional illumination for wall-mount installations.

CNC-machined from 6000-series aluminium, this IP65-rated fixture features a terminal block connection. It offers a 20W LED light source delivering up to 2400 lumens, reflector optics from 10° to 60°, and control options including 240V DALI or 24V DC dimming.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-882
Construction	Brass
Warranty	7 Years
Country of Manufacture	Australia

CRI (3000K)	90+
SDCM	3

Compliance / Certifications	SELV
Environmental certifications	IP IK

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II
