AQL-985

RGBW OPTION

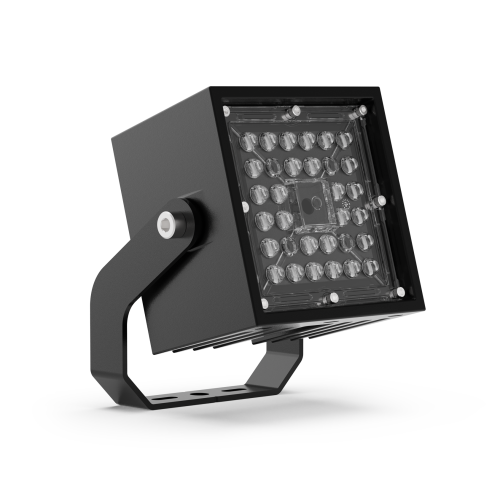

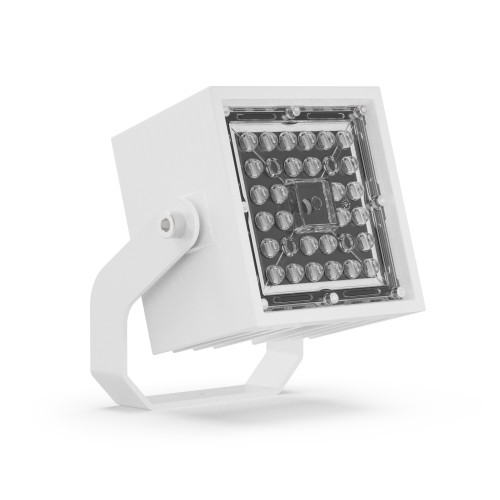

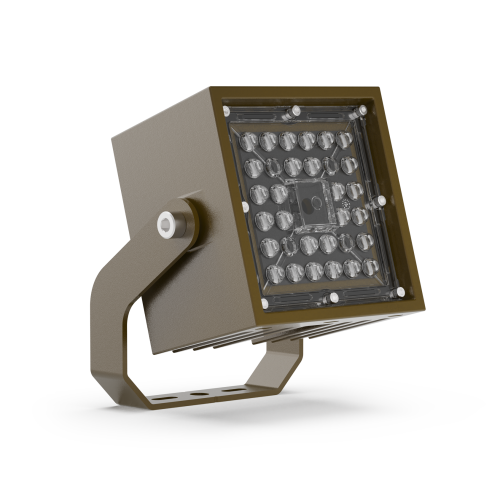

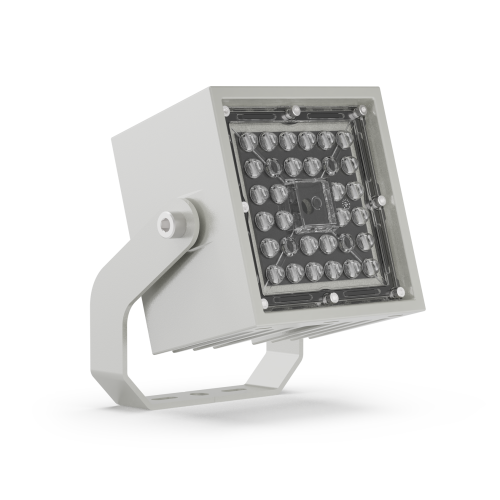

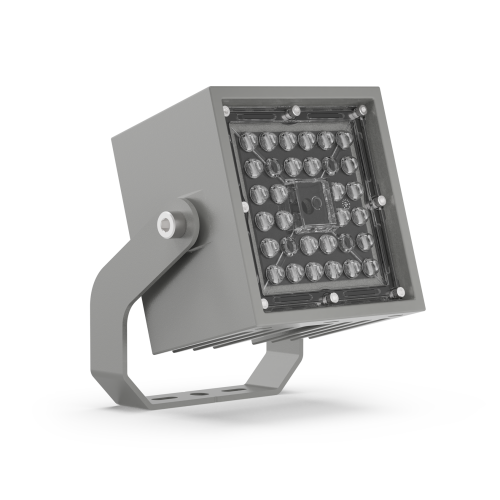

Compact aluminium projector designed for 24V DC medium, wide, and flood lighting.

The AQL-985 is a compact projector and flood light designed for architectural and landscape lighting applications.

Constructed from 6000 Series aluminium, this fixture operates on 24V DC with 3-wire PWM or RGBW dimming. It offers 35W or 50W LED configurations delivering up to 5200 lumens, customizable with 25°, 55°, or 80° optics, and a 500mm cable.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQL-985
Construction	CNC Machined Aluminium
Warranty	7 Years
Country of Manufacture	Australia

CRI (3000K)	90+
SDCM	3

Compliance / Certifications	SELV
Environmental certifications	IP IK

Voltage	24V DC
Frequency	-
Flicker free	Yes.
Dimming	Yes. Direct PWM.
Max. qty of fixtures C16 Breaker	PSU Dependant

LED Lifetime	L80 B10 70,000h (Ta 25C)
Operating temperature range	0C - 40C
IP Rating	IP65
IK Rating	IK04
Weight	0.2kg
Power cable	2-Core Anti-Siphon Cable
Electrical insulation class	Class II
