AQS-172
Strip Lighting · COB Strip
Strip Lighting
AQS-172
COB Strip

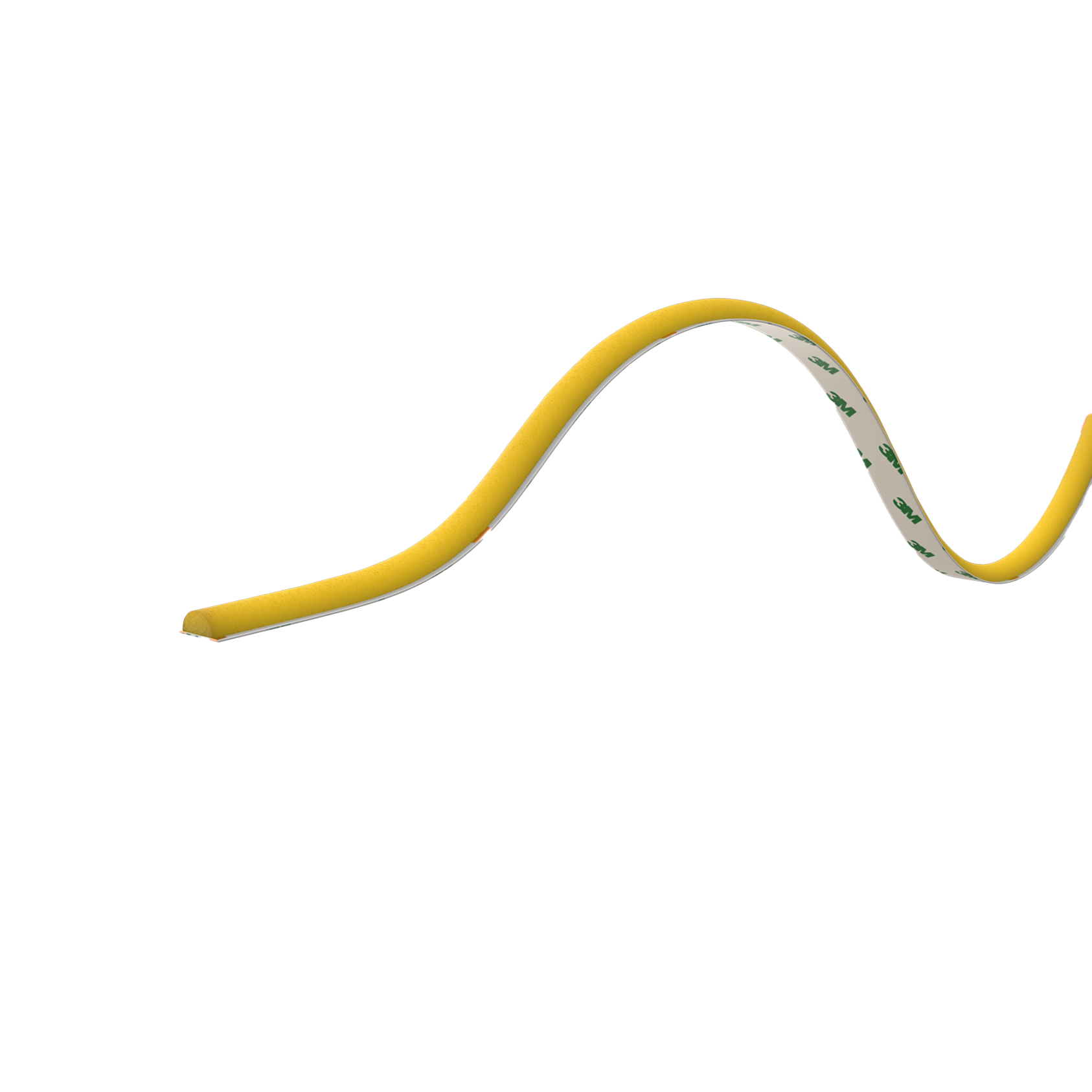

AQS-172 is the latest technology in LED Strip lighting with a maximum width of only 4mm, making the thinest COB strip available to date. Use for internal illumination, the COB LED Strip minimises the issue of dark LED dots for a clean continuous linear light source.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AQS-172 |
| Cut Interval | 31.25mm |
| Bend Direction | Vertically |
| Minimum Bend Diameter | 50mm |
| Materials | 3M Adhesive Backing |
| Warranty | 3 Year Aqualux Warranty |
| Country of Manufacture | China |
| LED Type | Sanan COB |
| LED Qty / M | 360pcs |
| CCT & Colour Options | 2700k / 3000k / 4000k / 6500k |
| CRI | 90+ |
| Emission Angle | 180° |
| Lumen Maintenance | 50,000 Hours L70 @ 30°C |
| 2000K / 5W | 482lm |
| 2700K / 5W | 507lm |
| 3000K / 5W | 520lm |
| 4000K / 5W | 565lm |
| 6500K / 5W | 580lm |
| Voltage | 24V DC |
| Watts (per Meter) | 5W |
| Working Mode | Constant Voltage (PWM) / DMX |
| Max Length (Single Power Feed) | 5m |
| Max Length (Double Power Feed) | 10m |
| Operating Temperature | -20° to +40°C |
| Installation Temperature | 5° to +35°C |
| IP Rating | IP20 |
