AQS-173

COB Strip

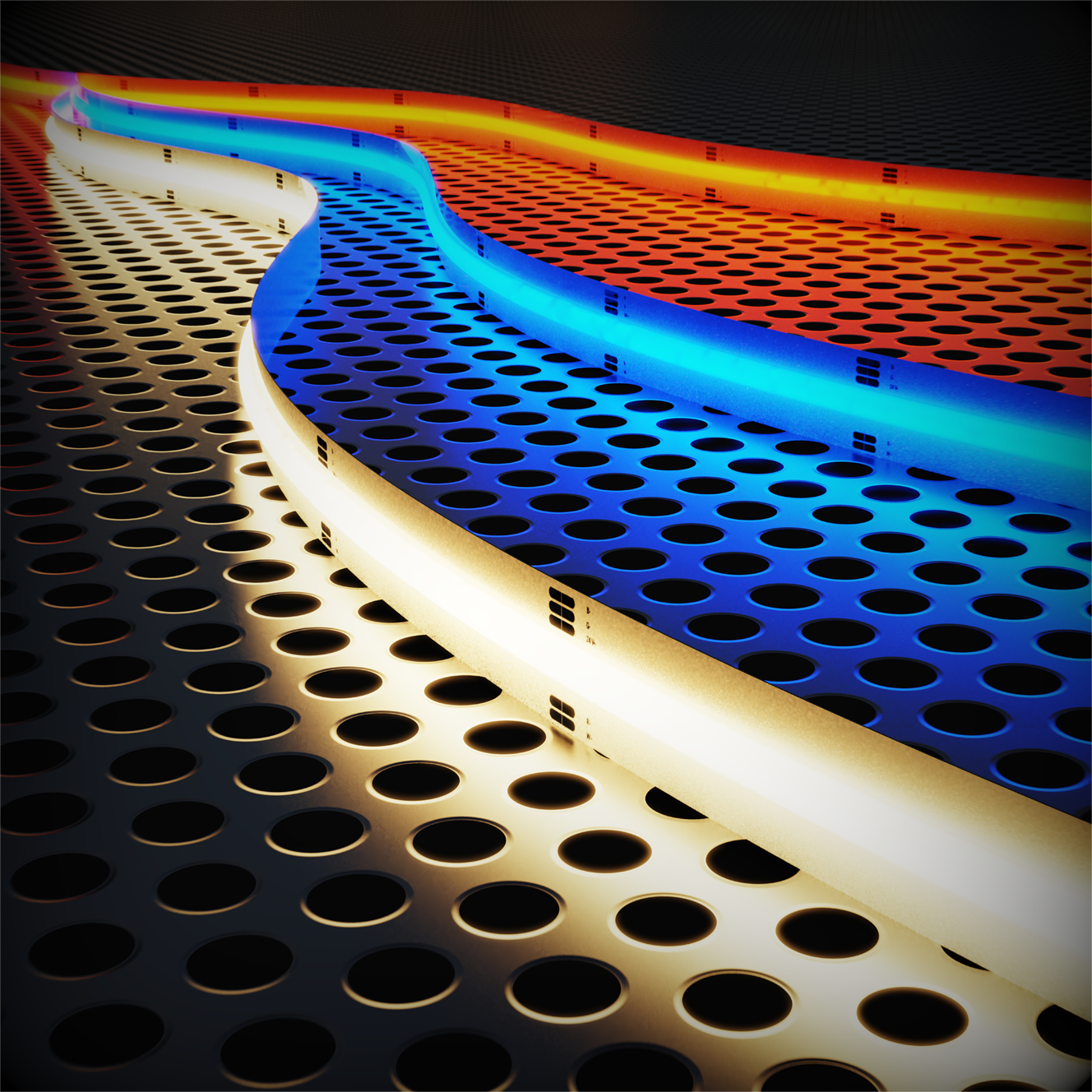

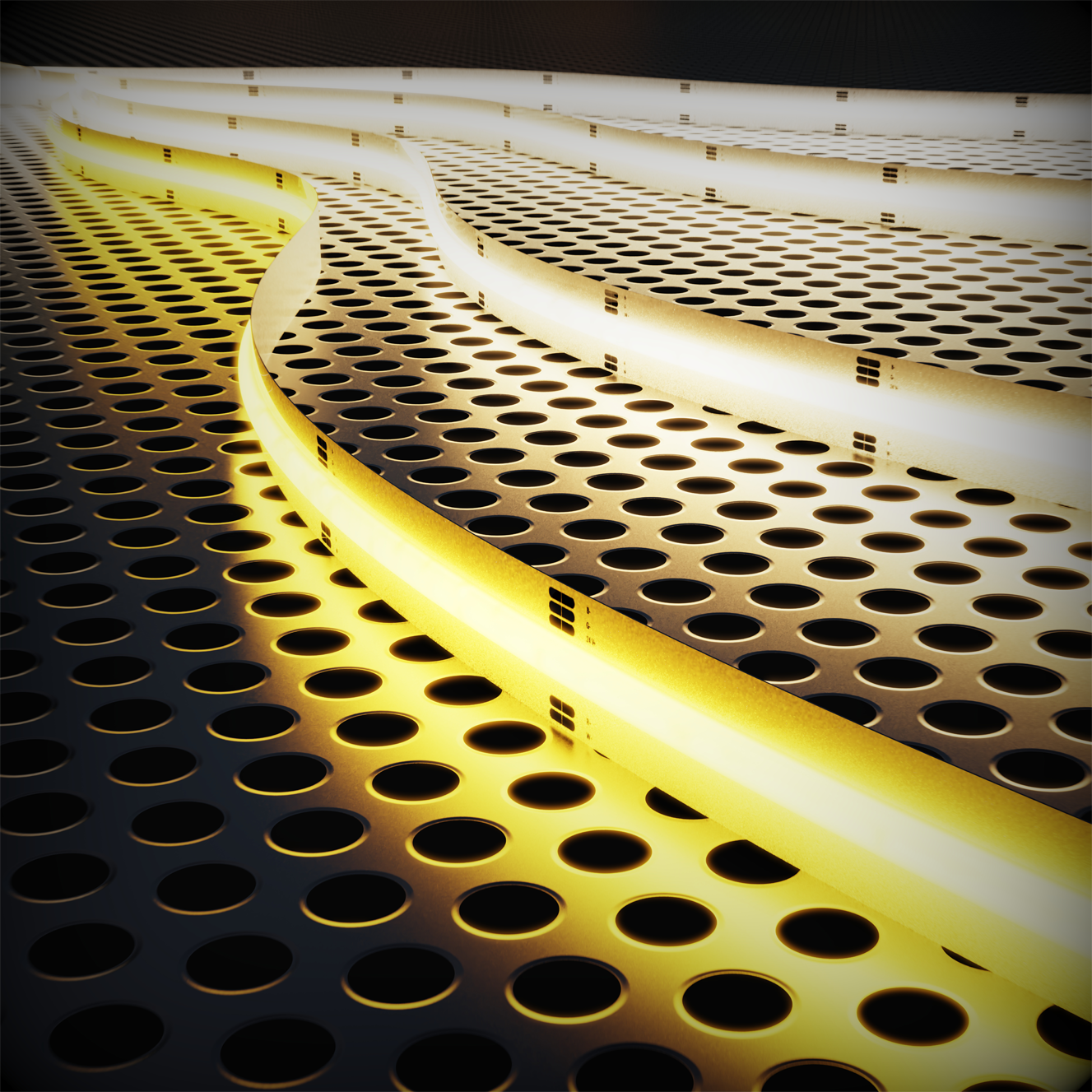

AQS-173 is the latest technology in Mono and RGB+3000K COB Strip lighting. Use for internal illumination, the COB LED Strip minimises the issue of dark LED dots for a clean continuous linear light source.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQS-173
Cut Interval	27.78mm / 50mm
Bend Direction	Vertically
Minimum Bend Diameter	50mm
Materials	3M Adhesive Backing
Warranty	5 Year Aqualux Warranty
Country of Manufacture	China

LED Type	COB
LED Qty / M	576pcs / 560pcs
CCT & Colour Options	2000K / 2700K / 3000K / 4000K / RGBW
CRI	90+
Emission Angle	180°

Lumen Maintenance	50,000 Hours L70 @ 30°C
2000K / 20W	1140lm
2700K / 20W	1420lm
3000K / 20W	1633lm
4000K / 20W	1740lm
RGBW / 16W	465lm-630lm
RGBW / 20W	850lm

Voltage	24V DC
Watts (per Meter)	20W / 16W
Working Mode	Constant Voltage (PWM) / DMX
Max Length (Single Power Feed)	5m
Max Length (Double Power Feed)	10m

Operating Temperature	-20° to +40°C
Installation Temperature	5° to +35°C
IP Rating	IP20
