AQS-174

COB Strip

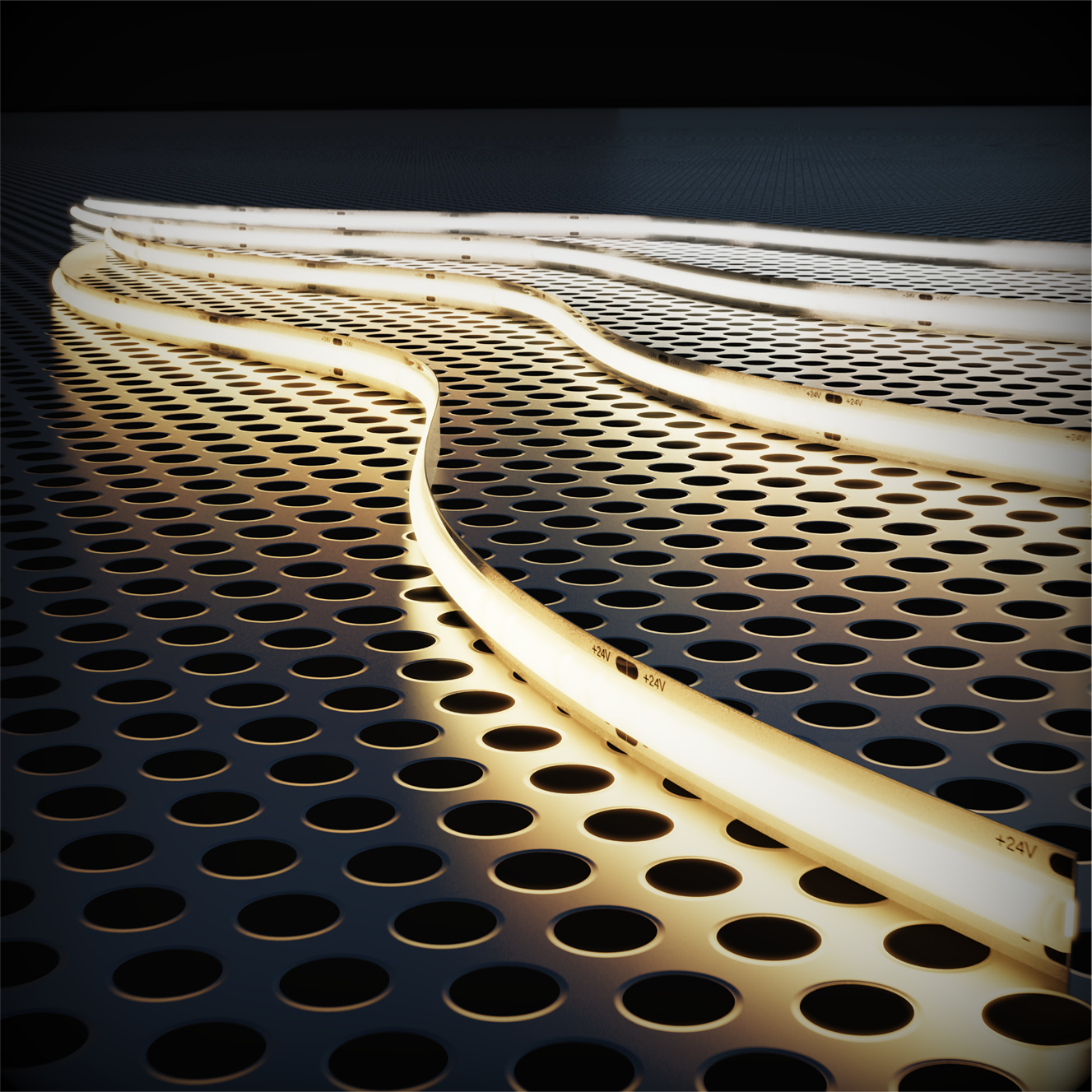

AQS-174 is a high-performance, dot-free IP20 COB (Chip on Board) LED strip designed to replace older legacy products like the AQS-170. It is built with 480 LEDs per meter on a 10mm PCB and operates on 24VDC.

Available Downloads

Dimension

SPECIFICATIONS

Product Code	AQS-174
Cut Interval	16.67mm
Bend Direction	Vertically
Minimum Bend Diameter	50mm

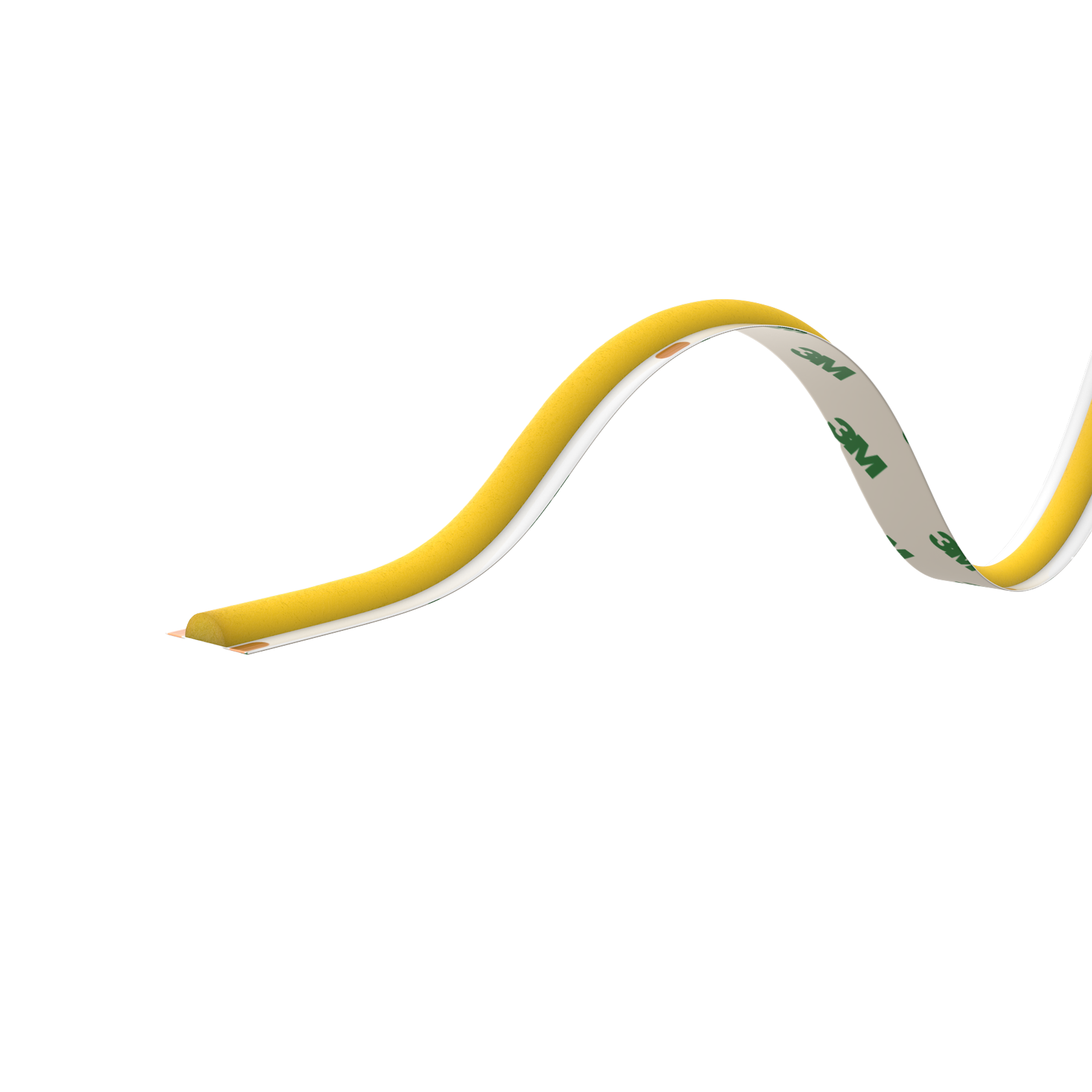

Materials	3M Adhesive Backing
Warranty	5 Year Aqualux Warranty
Country of Manufacture	China

LED Type	Sanan COB
LED Qty / M	480pcs
CCT & Colour Options	2700k / 3000k / 4000k
CRI	90+
Emission Angle	180°

Lumen Maintenance	50,000 Hours L70 @ 30°C
2700K / 2W	212lm
2700K / 5W	510lm
2700K / 10W	1011lm
2700K / 15W	1560lm
3000K / 2W	228lm
3000K / 5W	549lm
3000K / 10W	1008lm
3000K / 15W	1589lm
4000K / 10W	1140lm
4000K / 15W	1715lm

Voltage	24V DC
Watts (per Meter)	2W / 5W / 10W / 15W
Working Mode	Constant Voltage (PWM) / DMX
Max Length (Single Power Feed)	5m
Max Length (Double Power Feed)	10m

Operating Temperature	-20° to +40°C
Installation Temperature	5° to +35°C
IP Rating	IP20
