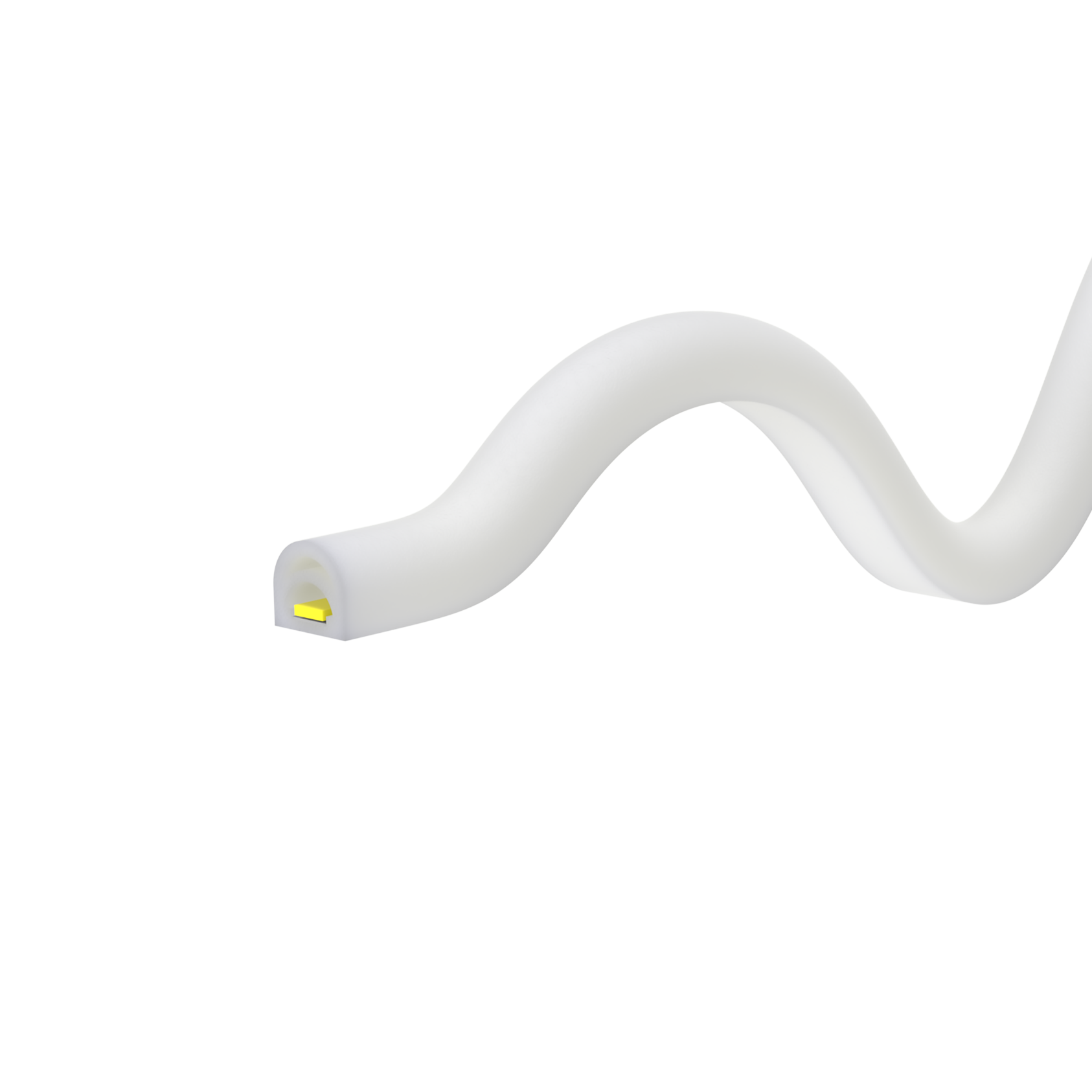

AQS-400
Neon Flex · Top Bend
Neon Flex
AQS-400
IP65 Neon Flex
The AQS-400 Neon Flex product is manufactured in a continuous
extrusion process and then manually terminated to length with IP65 overmolded cable entry points here in our Sydney factory for a quicker turn-around time.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AQS-400-Mono |
| Cut Interval | 31mm |
| Bend Direction | Vertically |
| Minimum Bend Diameter | 60mm |
| Materials | Silicone |
| Warranty | 3 Year Aqualux Warranty |
| Country of Manufacture | China |
| LED Type | 2216 |
| LED Qty / M | 192pcs |
| CCT & Colour Options | 2700K / 3000K / 4000K / 5000K |
| Emission Angle | 180° |
| Lumen Maintenance | 70,000 Hours L70@ 25°C, 50,000 Hours L70@ 50°C |
| 2000K / 10W | 400lm |
| 2700K / 5W | 260lm |
| 2700K / 10W | 500lm |
| 3000K / 5W | 270lm |
| 3000K / 10W | 530lm |
| 4000K / 10W | 540lm |
| 5000K / 10W | 545lm |
| Voltage | 24V DC |
| Watts (per Meter) | 5W / 10W |
| Working Mode | Constant Voltage (PWM) / DMX / DALI |
| Max Length (Single Power Feed) | 10m (5W) / 6m (10W) |
| Max Length (Double Power Feed) | 20M (5W) / 12M (10W) |
| Operating Temperature | -20° to +40°C |
| Installation Temperature | 5° to +35°C |
| IP Rating | IP65 |
