AQS-402
Neon Flex · Side Bend
Neon Flex

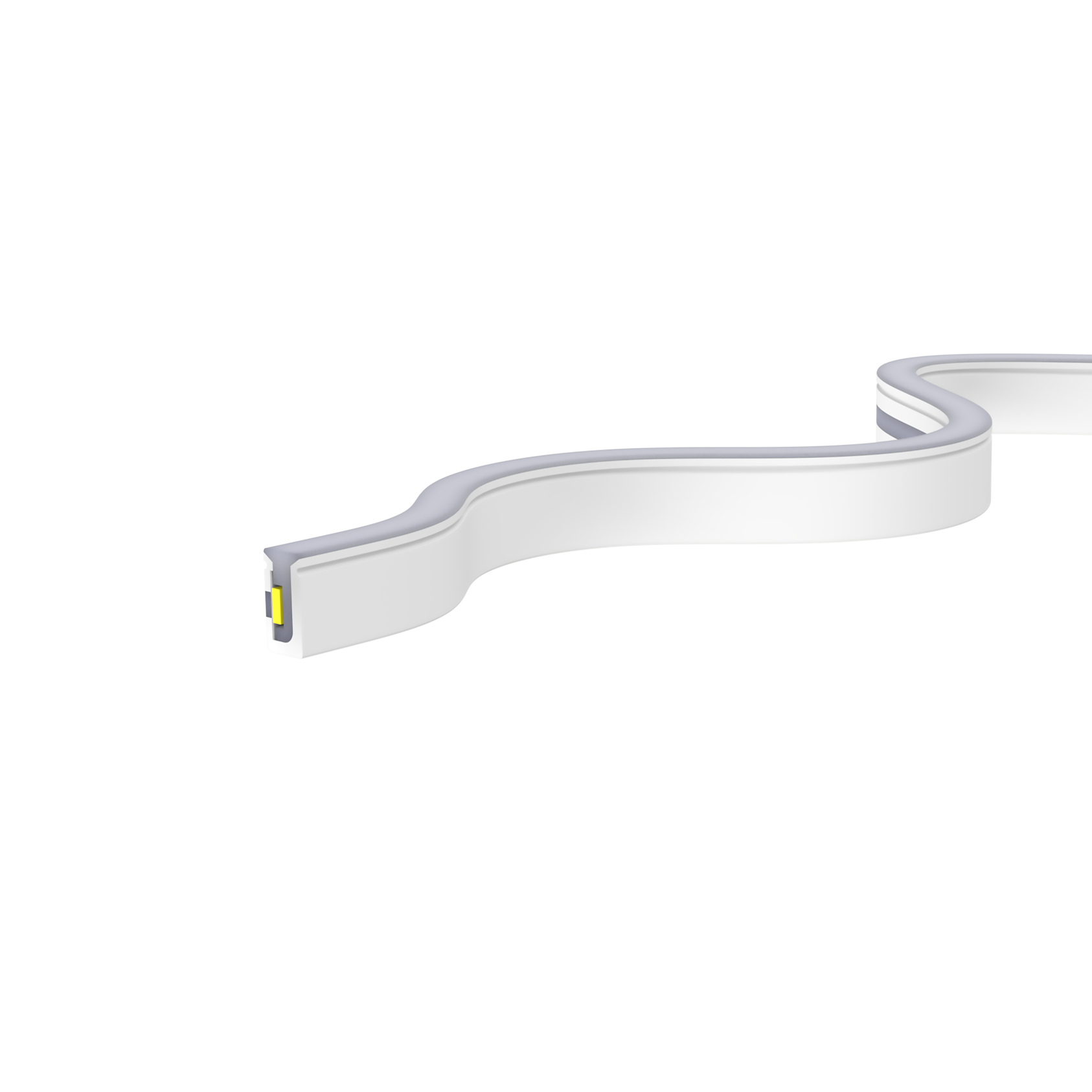

AQS-402
IP65 Neon Flex
The new slimline AQS-402 is only 6mm wide and 12mm high, making it the slimmest encapsulated LED Noen Flex strip to date. The AQS-402 is cut and tailed in our Sydney factory for a quick turnaround time.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AQS-402-Mono / AQS-402-RGB |
| Cut Interval | 50mm |
| Bend Direction | Horizontally |
| Minimum Bend Diameter | 100mm |
| Materials | Silicone |
| Warranty | 3 Year Aqualux Warranty - Not for pools or pool copings |
| Country of Manufacture | China |
| LED Type | SMD2835 Mono / SMD4040 RGBW |
| LED Qty / M | 140pcs Mono / 120pcs RGBW |
| CCT & Colour Options | 2700K / 3000K / 4000K / 5000K |
| Emission Angle | 120° |
| Lumen Maintenance | 70,000 Hours L70@ 25°C |
| 2000K / 5W | - |
| 2000K / 10W | 250lm |
| 2700K / 5W | 180lm |
| 2700K / 10W | 360lm |
| 3000K / 5W | 160lm |
| 3000K / 10W | 310lm |
| 4000K / 5W | - |
| 4000K / 10W | 365lm |
| 3000K / 5W | - |
| 5000K / 10W | 400lm |
| RGB / 5W | - |
| RGB / 10W | 126lm |
| Voltage | 24V DC |
| Watts (per Meter) | 5W / 10W |
| Working Mode | Constant Voltage (PWM) / DMX |
| Max Length (Single Power Feed) | 10m (5W) / 8m (10W) |
| Max Length (Double Power Feed) | 20M (5W) / 16M (10W) |
| Operating Temperature | -20° to +40°C |
| Installation Temperature | 5° to +35°C |
| IP Rating | IP65 |
