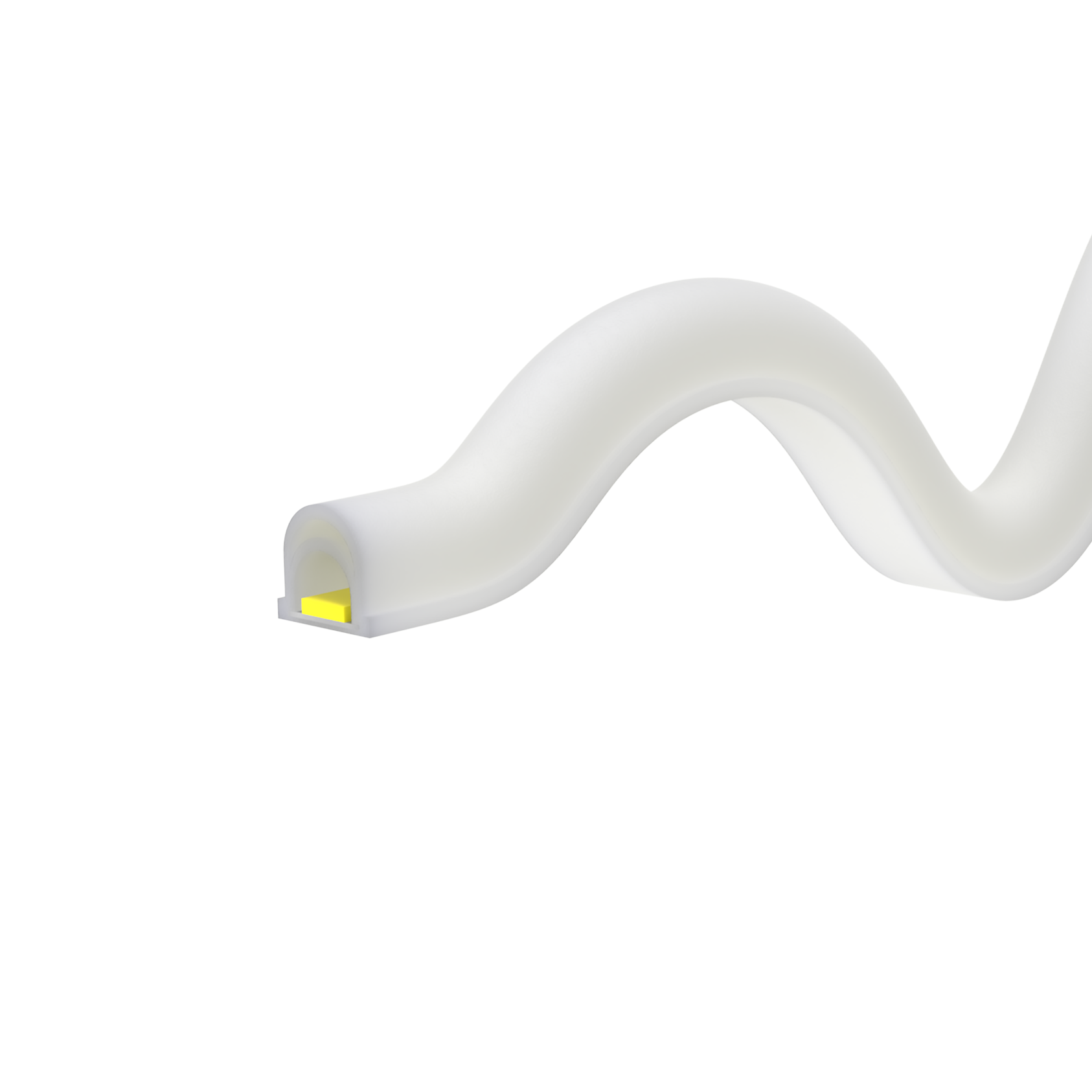

AQS-410
Neon Flex · Top Bend
Neon Flex
AQS-410
RGBW OPTION
IP65 Neon Flex
The AQS-410 Neon Flex product is manufactured in a continuous extrusion process and then manually terminated to length with IP65 overmolded cable entry points here in our Sydney factory for a quicker turn-around time.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AQS-410-RGB |
| Cut Interval | 55.5mm |
| Bend Direction | Vertically |
| Minimum Bend Diameter | 80mm |
| Materials | Silicone |
| Warranty | 3 Year Aqualux Warranty |
| Country of Manufacture | China |
| LED Type | SMD5050 |
| LED Qty / M | 180pcs |
| CCT & Colour Options | RGB |
| Emission Angle | 180° |
| Lumen Maintenance | 70,000 Hours L70@ 25°C, 50,000 Hours L70@ 50°C |
| RGB / 10W | 580lm |
| Voltage | 24V DC |
| Watts (per Meter) | 10W |
| Working Mode | Constant Voltage (PWM) / DMX |
| Max Length (Single Power Feed) | 8m |
| Max Length (Double Power Feed) | 16m |
| Operating Temperature | -20° to +40°C |
| Installation Temperature | 5° to +35°C |
| IP Rating | IP65 |
