AQS-421
Neon Flex · Top Bend
Neon Flex
AQS-421

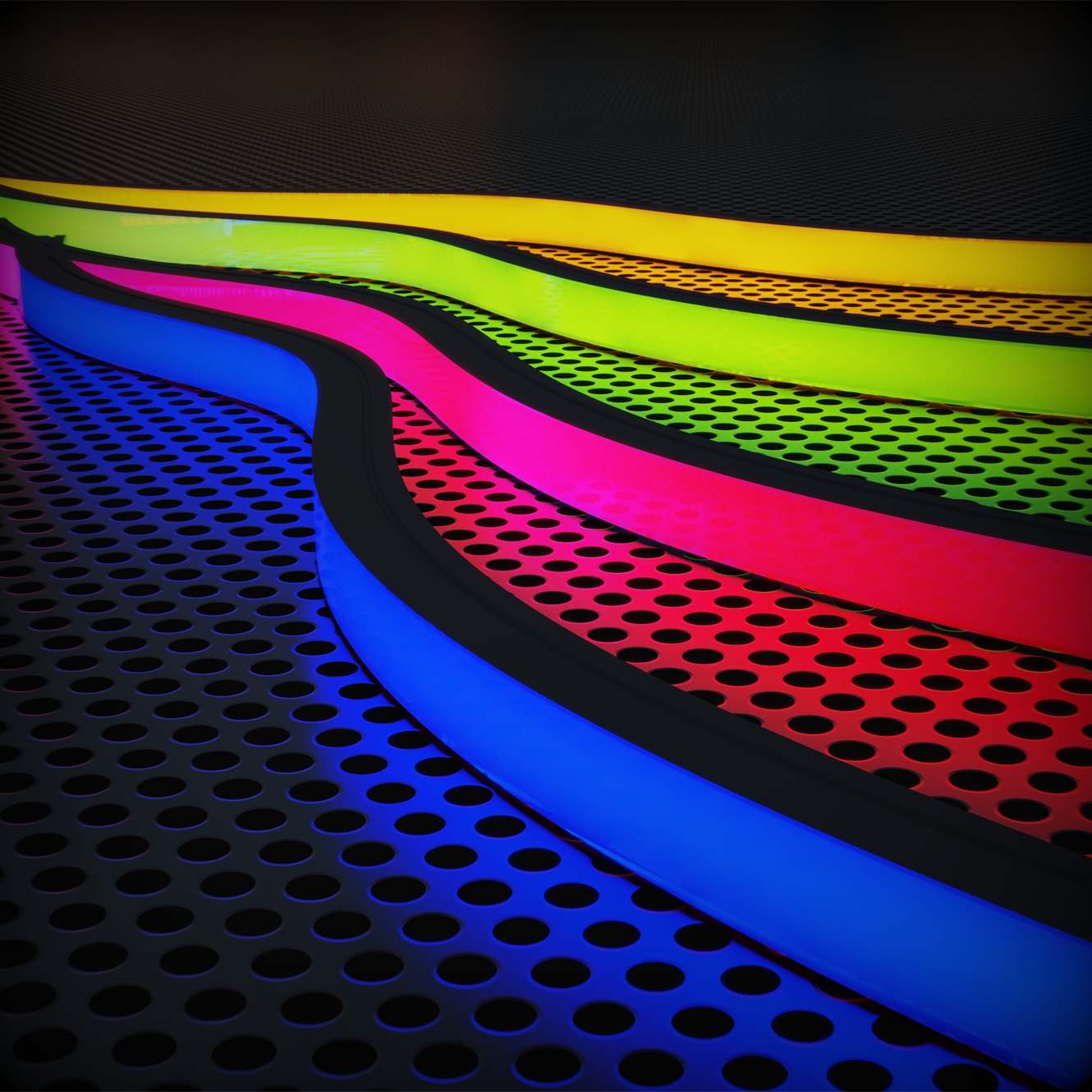

RGBW OPTION
IP65 Neon Flex
AQS-421 is a high output top-view IP67 Neon Flex in Mono and RGBW. Use for external facade illumination, in-pavement channels and exterior wall grazing where moisture and mechanical protection is required.
Available Downloads
Dimension
SPECIFICATIONS
| Product Code | AQS-421 |
| Cut Interval | 50mm / 63mm |
| Bend Direction | Horizontally |
| Minimum Bend Diameter | 300mm |
| Materials | Silicone |
| Warranty | 3 Year Aqualux Warranty - Not for pools or pool copings |
| Country of Manufacture | China |
| LED Type | SMD2835 |
| LED Qty / M | 140pcs |
| CCT & Colour Options | 2700K / 3000K / 4000K / 5000K / RGBW |
| Emission Angle | 120° |
| Lumen Maintenance | 50,000 Hours L70@ 50°C |
| 2000K / 15W | 680lm |
| 2700K / 15W | 770lm |
| 3000K / 15W | 850lm |
| 4000K / 15W | 915lm |
| 5000K / 15W | 930lm |
| RGB / 15W | - |
| RGBW / 15W | - |
| Voltage | 24V DC |
| Watts (per Meter) | 15W |
| Working Mode | Constant Voltage (PWM) / DMX |
| Max Length (Single Power Feed) | 7m |
| Max Length (Double Power Feed) | 14m |
| Operating Temperature | -20° to +40°C |
| Installation Temperature | 5° to +35°C |
| IP Rating | IP65 |
