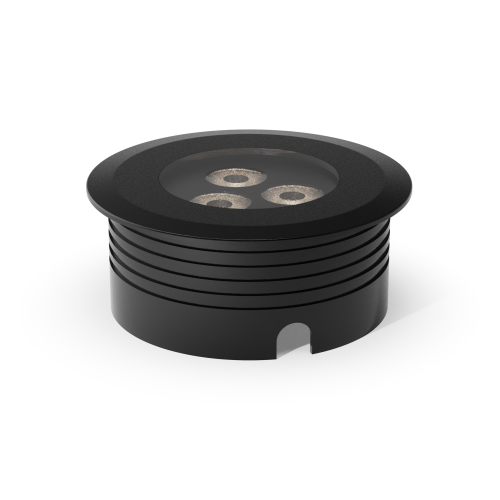

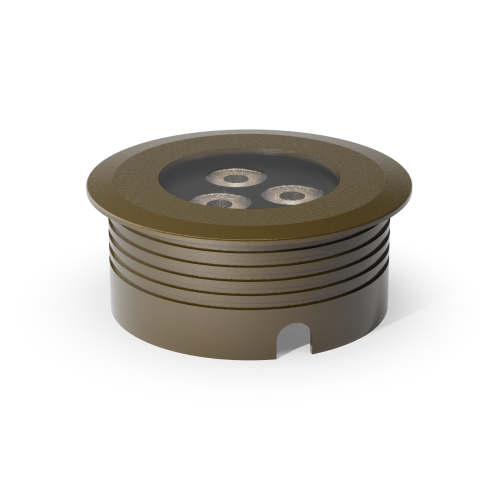

LumenaPro

AQL-158

Recessed Uplight

Introduction

The AQL-158 is a high-powered recessed uplight for illuminating walls, features and columns. Available with advanced wall-washing reflector for even horizontal illumination and glare minimisation, the AQL-158 can also be configured with triple TIR options for symmetric beam patterns and RGBW operation.

Specification

Product Code

AQL-158

Family

LumenaPro

Construction Material

CNC Machined Aluminium

Warranty

5 Year Aqualux Warranty

IP Rating

IP67

Options

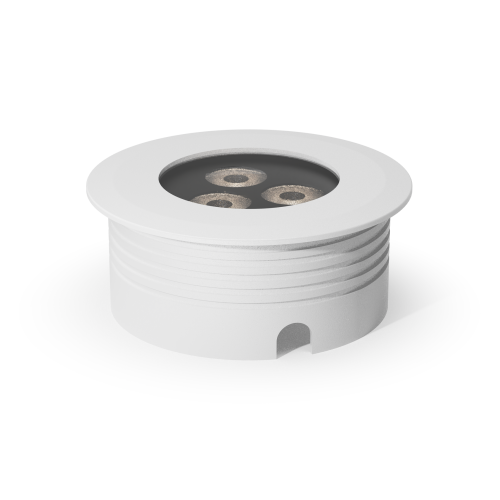

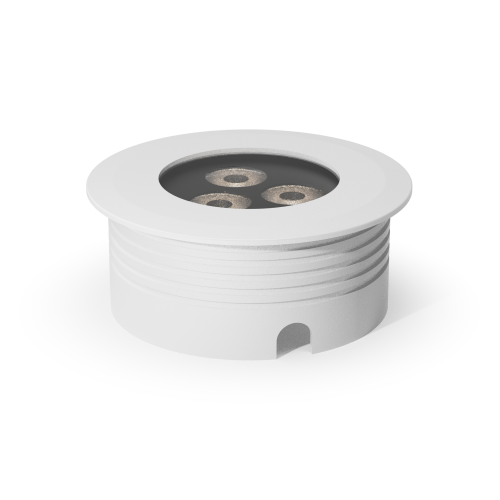

Body

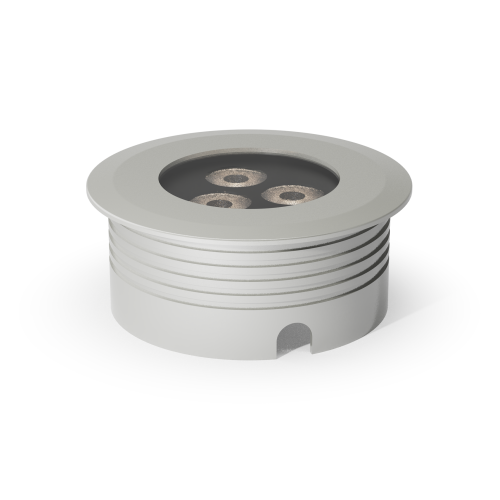

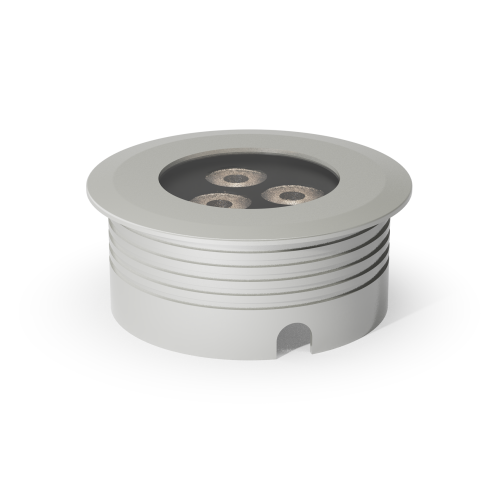

Silver Reign

Aluminium 6000 Series
Black Ace

Aluminium 6000 Series

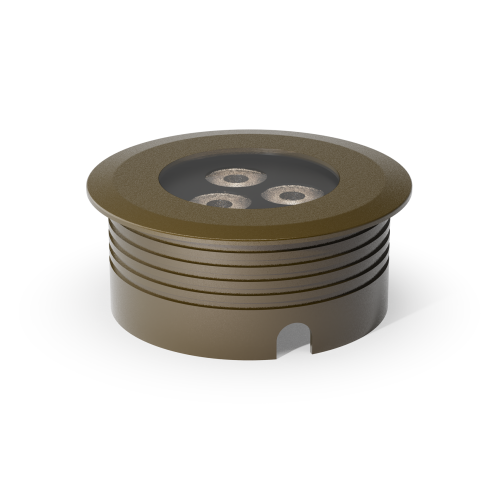

Medium Bronze

Aluminium 6000 Series

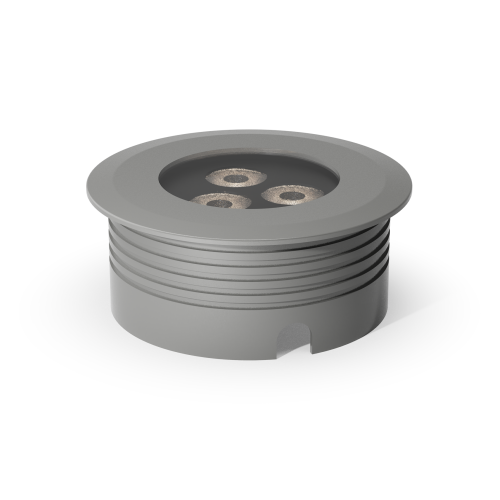

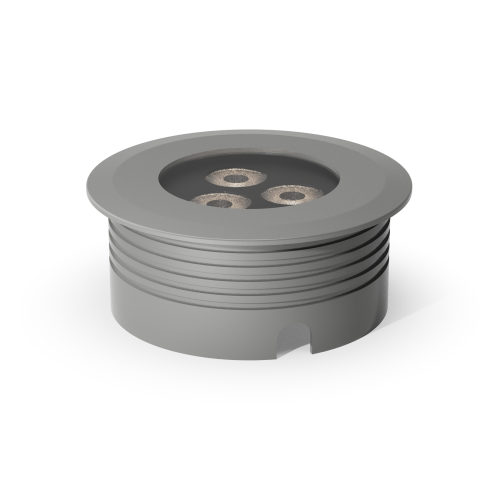

Venerable Silver

Aluminium 6000 Series

Control Gear

24V DC RGBW

Dimming: 4CH Low-Side PWM
24V DC

Dimming: PWM 10V Dimming

Light Sources

30W / 1665lm

RGB+3000K
21W / 480lm

Blue 470nm
21W / 840lm

Red 630nm
21W / 1260lm

Green 530nm
21W / 960lm

Amber 585nm
30W / 1800lm

3000K / 1300mA
30W / 1800lm

2700K / 1300mA
30W / 1800lm

4000K / 1300mA
30W / 1800lm

5700K / 1300mA

Optical

Narrow (10°)

10
Medium (25°)

25
Wide (35°)

35

Cable

Q

AqualuxPLUS QuickConnect

Configure order code

Base Code:

AQL-158

To configure your product/s, select from the options below.
Multiple selections are possible to produce your downloadable datasheet/s.

AQL-158 - has 108 variations

Product Code	Body	Rated Power	Light Source	Optical	Control Gear	Dimming	Cable
AQL-158-A1-B021BU10Q	Silver Reign Aluminium 6000 Series	21W	480lm / Blue 470nm	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B021BU25Q	Silver Reign Aluminium 6000 Series	21W	480lm / Blue 470nm	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B021BU35Q	Silver Reign Aluminium 6000 Series	21W	480lm / Blue 470nm	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B021RD10Q	Silver Reign Aluminium 6000 Series	21W	840lm / Red 630nm	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B021RD25Q	Silver Reign Aluminium 6000 Series	21W	840lm / Red 630nm	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B021RD35Q	Silver Reign Aluminium 6000 Series	21W	840lm / Red 630nm	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B021GN10Q	Silver Reign Aluminium 6000 Series	21W	1260lm / Green 530nm	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B021GN25Q	Silver Reign Aluminium 6000 Series	21W	1260lm / Green 530nm	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B021GN35Q	Silver Reign Aluminium 6000 Series	21W	1260lm / Green 530nm	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B021AM10Q	Silver Reign Aluminium 6000 Series	21W	960lm / Amber 585nm	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B021AM25Q	Silver Reign Aluminium 6000 Series	21W	960lm / Amber 585nm	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B021AM35Q	Silver Reign Aluminium 6000 Series	21W	960lm / Amber 585nm	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B0303010Q	Silver Reign Aluminium 6000 Series	30W	1800lm / 3000K / 1300mA	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B0303025Q	Silver Reign Aluminium 6000 Series	30W	1800lm / 3000K / 1300mA	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B0303035Q	Silver Reign Aluminium 6000 Series	30W	1800lm / 3000K / 1300mA	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B0302710Q	Silver Reign Aluminium 6000 Series	30W	1800lm / 2700K / 1300mA	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B0302725Q	Silver Reign Aluminium 6000 Series	30W	1800lm / 2700K / 1300mA	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B0302735Q	Silver Reign Aluminium 6000 Series	30W	1800lm / 2700K / 1300mA	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B0304010Q	Silver Reign Aluminium 6000 Series	30W	1800lm / 4000K / 1300mA	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B0304025Q	Silver Reign Aluminium 6000 Series	30W	1800lm / 4000K / 1300mA	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B0304035Q	Silver Reign Aluminium 6000 Series	30W	1800lm / 4000K / 1300mA	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B0305710Q	Silver Reign Aluminium 6000 Series	30W	1800lm / 5700K / 1300mA	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B0305725Q	Silver Reign Aluminium 6000 Series	30W	1800lm / 5700K / 1300mA	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-B0305735Q	Silver Reign Aluminium 6000 Series	30W	1800lm / 5700K / 1300mA	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B021BU10Q	Black Ace Aluminium 6000 Series	21W	480lm / Blue 470nm	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B021BU25Q	Black Ace Aluminium 6000 Series	21W	480lm / Blue 470nm	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B021BU35Q	Black Ace Aluminium 6000 Series	21W	480lm / Blue 470nm	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B021RD10Q	Black Ace Aluminium 6000 Series	21W	840lm / Red 630nm	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B021RD25Q	Black Ace Aluminium 6000 Series	21W	840lm / Red 630nm	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B021RD35Q	Black Ace Aluminium 6000 Series	21W	840lm / Red 630nm	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B021GN10Q	Black Ace Aluminium 6000 Series	21W	1260lm / Green 530nm	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B021GN25Q	Black Ace Aluminium 6000 Series	21W	1260lm / Green 530nm	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B021GN35Q	Black Ace Aluminium 6000 Series	21W	1260lm / Green 530nm	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B021AM10Q	Black Ace Aluminium 6000 Series	21W	960lm / Amber 585nm	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B021AM25Q	Black Ace Aluminium 6000 Series	21W	960lm / Amber 585nm	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B021AM35Q	Black Ace Aluminium 6000 Series	21W	960lm / Amber 585nm	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B0303010Q	Black Ace Aluminium 6000 Series	30W	1800lm / 3000K / 1300mA	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B0303025Q	Black Ace Aluminium 6000 Series	30W	1800lm / 3000K / 1300mA	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B0303035Q	Black Ace Aluminium 6000 Series	30W	1800lm / 3000K / 1300mA	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B0302710Q	Black Ace Aluminium 6000 Series	30W	1800lm / 2700K / 1300mA	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B0302725Q	Black Ace Aluminium 6000 Series	30W	1800lm / 2700K / 1300mA	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B0302735Q	Black Ace Aluminium 6000 Series	30W	1800lm / 2700K / 1300mA	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B0304010Q	Black Ace Aluminium 6000 Series	30W	1800lm / 4000K / 1300mA	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B0304025Q	Black Ace Aluminium 6000 Series	30W	1800lm / 4000K / 1300mA	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B0304035Q	Black Ace Aluminium 6000 Series	30W	1800lm / 4000K / 1300mA	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B0305710Q	Black Ace Aluminium 6000 Series	30W	1800lm / 5700K / 1300mA	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B0305725Q	Black Ace Aluminium 6000 Series	30W	1800lm / 5700K / 1300mA	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A2-B0305735Q	Black Ace Aluminium 6000 Series	30W	1800lm / 5700K / 1300mA	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B021BU10Q	Medium Bronze Aluminium 6000 Series	21W	480lm / Blue 470nm	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B021BU25Q	Medium Bronze Aluminium 6000 Series	21W	480lm / Blue 470nm	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B021BU35Q	Medium Bronze Aluminium 6000 Series	21W	480lm / Blue 470nm	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B021RD10Q	Medium Bronze Aluminium 6000 Series	21W	840lm / Red 630nm	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B021RD25Q	Medium Bronze Aluminium 6000 Series	21W	840lm / Red 630nm	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B021RD35Q	Medium Bronze Aluminium 6000 Series	21W	840lm / Red 630nm	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B021GN10Q	Medium Bronze Aluminium 6000 Series	21W	1260lm / Green 530nm	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B021GN25Q	Medium Bronze Aluminium 6000 Series	21W	1260lm / Green 530nm	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B021GN35Q	Medium Bronze Aluminium 6000 Series	21W	1260lm / Green 530nm	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B021AM10Q	Medium Bronze Aluminium 6000 Series	21W	960lm / Amber 585nm	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B021AM25Q	Medium Bronze Aluminium 6000 Series	21W	960lm / Amber 585nm	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B021AM35Q	Medium Bronze Aluminium 6000 Series	21W	960lm / Amber 585nm	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B0303010Q	Medium Bronze Aluminium 6000 Series	30W	1800lm / 3000K / 1300mA	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B0303025Q	Medium Bronze Aluminium 6000 Series	30W	1800lm / 3000K / 1300mA	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B0303035Q	Medium Bronze Aluminium 6000 Series	30W	1800lm / 3000K / 1300mA	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B0302710Q	Medium Bronze Aluminium 6000 Series	30W	1800lm / 2700K / 1300mA	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B0302725Q	Medium Bronze Aluminium 6000 Series	30W	1800lm / 2700K / 1300mA	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B0302735Q	Medium Bronze Aluminium 6000 Series	30W	1800lm / 2700K / 1300mA	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B0304010Q	Medium Bronze Aluminium 6000 Series	30W	1800lm / 4000K / 1300mA	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B0304025Q	Medium Bronze Aluminium 6000 Series	30W	1800lm / 4000K / 1300mA	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B0304035Q	Medium Bronze Aluminium 6000 Series	30W	1800lm / 4000K / 1300mA	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B0305710Q	Medium Bronze Aluminium 6000 Series	30W	1800lm / 5700K / 1300mA	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B0305725Q	Medium Bronze Aluminium 6000 Series	30W	1800lm / 5700K / 1300mA	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A3-B0305735Q	Medium Bronze Aluminium 6000 Series	30W	1800lm / 5700K / 1300mA	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B021BU10Q	Venerable Silver Aluminium 6000 Series	21W	480lm / Blue 470nm	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B021BU25Q	Venerable Silver Aluminium 6000 Series	21W	480lm / Blue 470nm	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B021BU35Q	Venerable Silver Aluminium 6000 Series	21W	480lm / Blue 470nm	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B021RD10Q	Venerable Silver Aluminium 6000 Series	21W	840lm / Red 630nm	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B021RD25Q	Venerable Silver Aluminium 6000 Series	21W	840lm / Red 630nm	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B021RD35Q	Venerable Silver Aluminium 6000 Series	21W	840lm / Red 630nm	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B021GN10Q	Venerable Silver Aluminium 6000 Series	21W	1260lm / Green 530nm	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B021GN25Q	Venerable Silver Aluminium 6000 Series	21W	1260lm / Green 530nm	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B021GN35Q	Venerable Silver Aluminium 6000 Series	21W	1260lm / Green 530nm	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B021AM10Q	Venerable Silver Aluminium 6000 Series	21W	960lm / Amber 585nm	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B021AM25Q	Venerable Silver Aluminium 6000 Series	21W	960lm / Amber 585nm	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B021AM35Q	Venerable Silver Aluminium 6000 Series	21W	960lm / Amber 585nm	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B0303010Q	Venerable Silver Aluminium 6000 Series	30W	1800lm / 3000K / 1300mA	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B0303025Q	Venerable Silver Aluminium 6000 Series	30W	1800lm / 3000K / 1300mA	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B0303035Q	Venerable Silver Aluminium 6000 Series	30W	1800lm / 3000K / 1300mA	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B0302710Q	Venerable Silver Aluminium 6000 Series	30W	1800lm / 2700K / 1300mA	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B0302725Q	Venerable Silver Aluminium 6000 Series	30W	1800lm / 2700K / 1300mA	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B0302735Q	Venerable Silver Aluminium 6000 Series	30W	1800lm / 2700K / 1300mA	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B0304010Q	Venerable Silver Aluminium 6000 Series	30W	1800lm / 4000K / 1300mA	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B0304025Q	Venerable Silver Aluminium 6000 Series	30W	1800lm / 4000K / 1300mA	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B0304035Q	Venerable Silver Aluminium 6000 Series	30W	1800lm / 4000K / 1300mA	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B0305710Q	Venerable Silver Aluminium 6000 Series	30W	1800lm / 5700K / 1300mA	10	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B0305725Q	Venerable Silver Aluminium 6000 Series	30W	1800lm / 5700K / 1300mA	25	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A4-B0305735Q	Venerable Silver Aluminium 6000 Series	30W	1800lm / 5700K / 1300mA	35	24V DC	PWM 10V Dimming	AqualuxPLUS QuickConnect
AQL-158-A1-Z030Z210Q	Silver Reign Aluminium 6000 Series	30W	1665lm / RGB+3000K	10	24V DC RGBW	4CH Low-Side PWM	AqualuxPLUS QuickConnect
AQL-158-A1-Z030Z225Q	Silver Reign Aluminium 6000 Series	30W	1665lm / RGB+3000K	25	24V DC RGBW	4CH Low-Side PWM	AqualuxPLUS QuickConnect
AQL-158-A1-Z030Z235Q	Silver Reign Aluminium 6000 Series	30W	1665lm / RGB+3000K	35	24V DC RGBW	4CH Low-Side PWM	AqualuxPLUS QuickConnect
AQL-158-A2-Z030Z210Q	Black Ace Aluminium 6000 Series	30W	1665lm / RGB+3000K	10	24V DC RGBW	4CH Low-Side PWM	AqualuxPLUS QuickConnect
AQL-158-A2-Z030Z225Q	Black Ace Aluminium 6000 Series	30W	1665lm / RGB+3000K	25	24V DC RGBW	4CH Low-Side PWM	AqualuxPLUS QuickConnect
AQL-158-A2-Z030Z235Q	Black Ace Aluminium 6000 Series	30W	1665lm / RGB+3000K	35	24V DC RGBW	4CH Low-Side PWM	AqualuxPLUS QuickConnect
AQL-158-A3-Z030Z210Q	Medium Bronze Aluminium 6000 Series	30W	1665lm / RGB+3000K	10	24V DC RGBW	4CH Low-Side PWM	AqualuxPLUS QuickConnect
AQL-158-A3-Z030Z225Q	Medium Bronze Aluminium 6000 Series	30W	1665lm / RGB+3000K	25	24V DC RGBW	4CH Low-Side PWM	AqualuxPLUS QuickConnect
AQL-158-A3-Z030Z235Q	Medium Bronze Aluminium 6000 Series	30W	1665lm / RGB+3000K	35	24V DC RGBW	4CH Low-Side PWM	AqualuxPLUS QuickConnect
AQL-158-A4-Z030Z210Q	Venerable Silver Aluminium 6000 Series	30W	1665lm / RGB+3000K	10	24V DC RGBW	4CH Low-Side PWM	AqualuxPLUS QuickConnect
AQL-158-A4-Z030Z225Q	Venerable Silver Aluminium 6000 Series	30W	1665lm / RGB+3000K	25	24V DC RGBW	4CH Low-Side PWM	AqualuxPLUS QuickConnect
AQL-158-A4-Z030Z235Q	Venerable Silver Aluminium 6000 Series	30W	1665lm / RGB+3000K	35	24V DC RGBW	4CH Low-Side PWM	AqualuxPLUS QuickConnect
